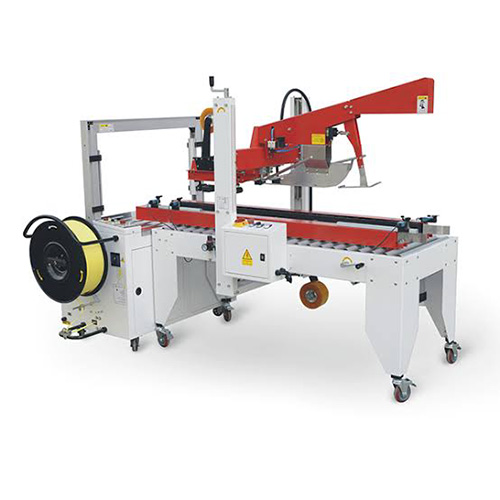

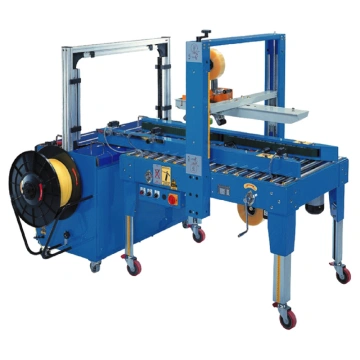

The Auto Flap Closing and Strapping Combo (Taiwan Make) is a state-of-the-art packaging solution combining carton flap sealing with automatic strapping in a single, integrated system. This machine is ideal for streamlining packaging operations, especially in high-volume environments such as manufacturing, logistics, and e-commerce.
Voltage (V/Hz) AC 220/50 110/60
Maximum Carton Size (LxWxH)(mm) 550x500x500
Minimum Carton Size (LxWxH)(mm) 200x150x110
Speed (m/min) 22-25 cartons
Available Adhesive Tape BOPP, PVC Adhesive Tape
Height of Table (mm) 600-700
Width of Adhesive Tape (mm) 3 inch
Air Compressor 04-06
Power(W) 260
Power Supply 1 Phase 110V/220V/240V
Packing Size Max.: L∞ x W500 x H500 mm
Min.: L150 x W135 x H130 mm
Tape Width 50 mm (2") or 76 mm (3")
Working Table Height 570~770 mm (Adjustable)
Sealing Capacity 20 Cartons per minute
(Carton: L500 mm, Power:60 HZ)
Dimensions L1373 x W900 x H1375 mm
